Woodworking Desktop Quick Clamping Tool

Product Overview

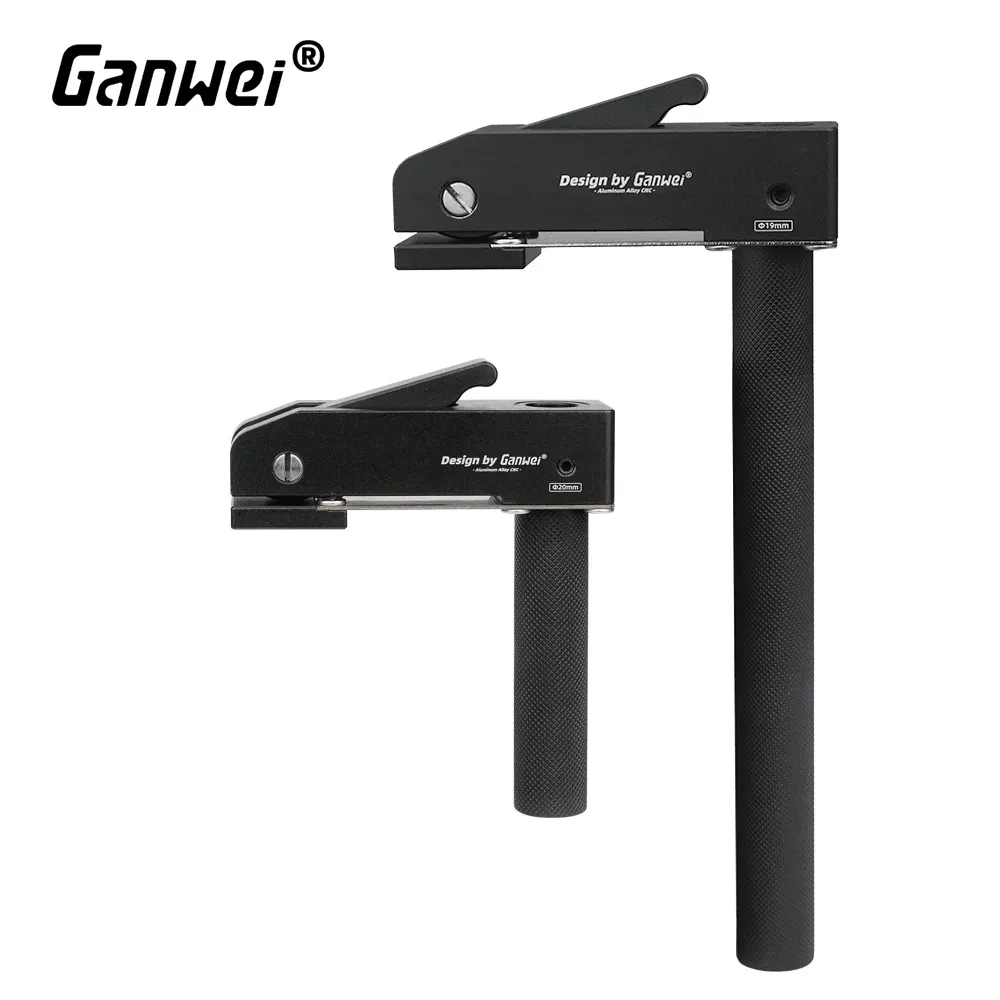

The Ganwei Woodworking Desktop Clamping Tool is a lightweight and highly convenient hand clamping tool designed specifically for woodworking desktop tasks. Through a push-button handle and multi-position adjustment, it achieves quick and non-destructive clamping of wood, suitable for various woodworking processes (such as cutting, sanding, and joining) and DIY crafts. It is a practical auxiliary tool that improves the efficiency and precision of desktop work.

Key Highlights

1. High-Efficiency and Fast Clamping

Utilizing a lever-type push-button design, there is no need to repeatedly tighten screws: simply fix the tool to the desktop and press the handle to quickly clamp the wood. A single operation takes only 2-3 seconds, increasing efficiency by over 60% compared to traditional F-clamps.

2. Non-Destructive Wood Protection

The contact surface uses a wood-compatible cushioning structure (with invisible protective pads) to distribute pressure during clamping, preventing marks, dents, or chipping on the wood surface. It is especially suitable for cork, painted wood, and other easily damaged workpieces.

3. Three Adjustable Clamping Force

The handle supports three angle adjustments: "High / Medium / Low," corresponding to different clamping forces:

High: Suitable for hardwoods (such as oak and walnut) or jobs requiring high-strength fixation (such as chainsaw cutting);

Medium: Suitable for common softwoods (such as pine) and splicing operations;

Low: Used for thin woods (such as veneer) and fine sanding, requiring light pressure.

4. Multiple Size Compatibility

Two mounting sizes are available:

φ19mm (3/4 inch): Compatible with most standard woodworking table clamp holes;

φ20mm: Compatible with some large-diameter table clamps, offering wider compatibility.

Detailed Specifications

Product Name: Woodworking Desktop Wood Press

Product Model: MG0-001-0033A

Body: 6061 Aluminum Alloy (CNC precision machining, black anodized surface)

Core Components: 304 Stainless Steel (corrosion resistant, high load-bearing capacity)

Dimensions: Length 100mm × Width 30mm

Total Handle Length: 200mm (including grip area)

Mounting Hole Diameter: φ19mm/φ20mm (choose one)

Maximum Clamping Height: 60mm (covers most desktop wood thicknesses)

Rated Clamping Force: High (approx. 80N) / Medium (approx. 50N) / Low (approx. 25N)

Net Weight: 0.23kg (lightweight design, comfortable for extended use)

Applicable Scenarios

Woodworking Desktop Fixing: Wood positioning during cutting, sanding, and drilling;

DIY Crafts: Model assembly, leather crafts / Auxiliary clamping for small wooden items;

Small workpiece processing: clamping operations for delicate products such as jewelry boxes and wooden spoons.

Precautions for use:

During installation, ensure the tool is fully engaged with the tabletop clamping hole to prevent loosening;

Select the appropriate clamping setting according to the characteristics of the wood to avoid excessive force that could damage the workpiece;

After prolonged use, regularly check the wear of the protective pads and replace them promptly to maintain protective effectiveness.
