Suitable Scenarios: Grooving concealed connectors in furniture panels (straight/semi-through sliding joints, concealed screws, etc.)
I. Core Product Positioning
This edge trimming machine assists in grooving, specifically designed for concealed connectors in panel furniture. Paired with a 65mm diameter edge trimmer, it achieves precise and efficient groove processing, eliminating exposed connectors in furniture assembly, combining aesthetics and stability.
II. Compatibility and Installation
Compatible Models: 65mm diameter handheld edge trimmers

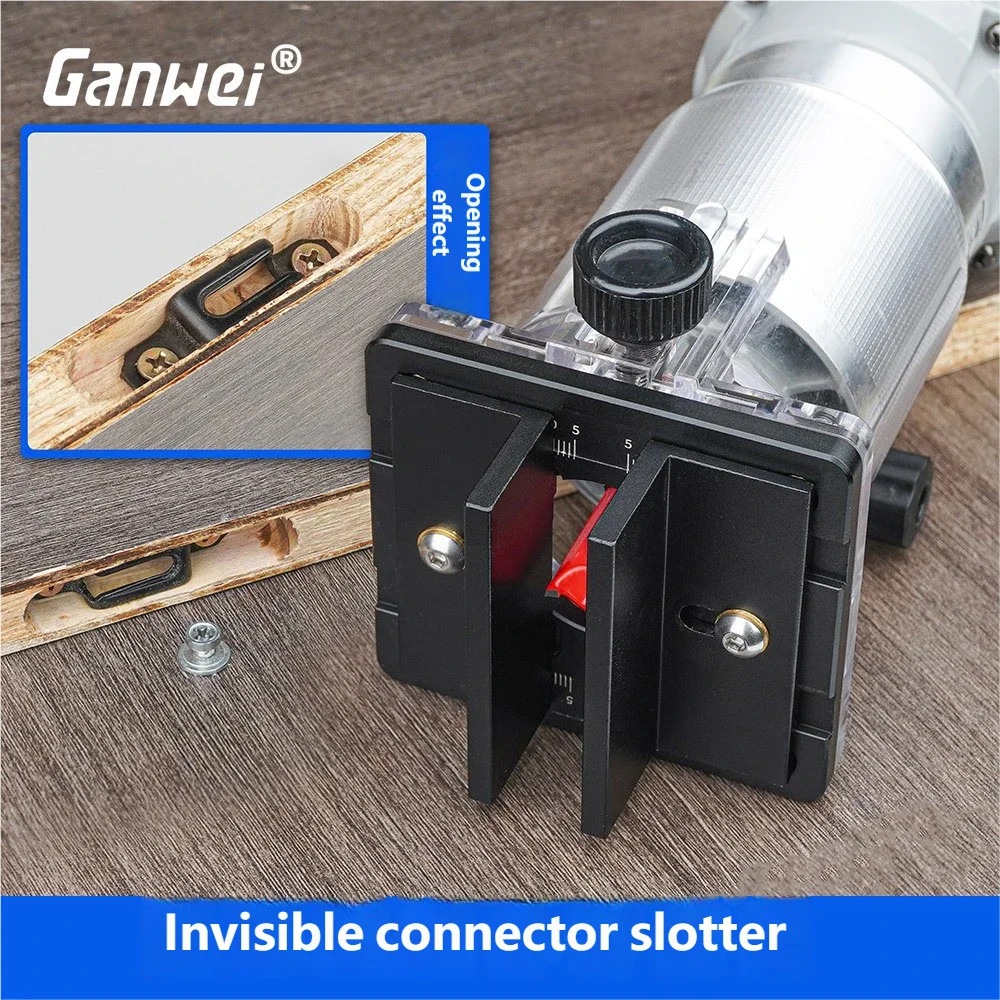

Installation Method: Simply embed the edge trimmer into the transparent fixing tube and tighten the top knob to complete the fixation. No additional tools are required; installation and removal are quick and easy.
III. Core Functions and Advantages
1. Precise Grooving, Adaptable to Concealed Connectors
Supports concealed connector groove types such as "straight groove" and "semi-through sliding groove," with groove dimensions perfectly matching common concealed connectors (such as two-in-one connectors);
Includes "Example of Hole Opening Effect" with corresponding groove standards, allowing direct embedding of concealed screws/sliding clips after processing, with a splicing error ≤0.1mm.
2. Multi-Dimensional Adjustment, Adaptable to Different Panels
Stop Edge Distance Adjustment: Precisely control the distance between the groove and the edge of the panel using sliding stops on both sides and scale markings (0-15mm);
Milling Cutter Depth Adjustment: The stop has a built-in depth scale (0-25mm), which, combined with the trimmer's own adjustment, can adapt to furniture boards (such as particleboard and plywood) with a thickness of 5-25mm;
Limited Slide Design: The stop adopts a parallel slide structure, ensuring no offset during sliding and guaranteeing the straightness and parallelism of the groove.
3. Durable Materials and Precision Craftsmanship
Materials: The stop block is made of CNC precision-machined aluminum alloy, boasting high hardness and resistance to deformation; the fixing cylinder is made of high-transparency, wear-resistant plastic, allowing clear observation of the milling cutter's working status.
Detailed Craftsmanship: The scale markings are laser-engraved, ensuring durability over long-term use; knobs, screws, and other accessories are made of rust-resistant metal, suitable for frequent operation scenarios.
IV. Usage Scenarios and Efficiency
Applicable Boards: Commonly used furniture boards such as MDF, particleboard, and multi-layer solid wood boards;
Working Efficiency: Single-slot processing time for a single board is ≤30 seconds, increasing efficiency by 80% compared to manual grooving, with higher slot consistency and reduced rework in furniture assembly.
V. Packaging and Accessories
Package includes: Grooving machine body (including fixing cylinder + aluminum alloy stop block), 1 spare fixing screw;
Recommended Accessories: A trimming milling cutter of the corresponding size (selected according to the width of the hidden connector slot, typically 6-8mm).
VI. Brand Guarantee
Genuine brand parts are used, and their compatibility and durability have been verified through actual testing. This avoids issues such as size deviations and easy damage associated with non-original tools, making grooving operations more worry-free.
